General Information

The MOV-CH100E0J of 25mm radial leaded varistor devices protects against overvoltage transients such as lightning, power contact and power induction. The metal oxide varistors with varistor voltages 90V to 110V. and Vrms voltages 68 V. The devices have a high current handling, high energy absorption capability and fast response times to protect against transient faults up to rated limits

Features

• Operating voltage (V1mA) 90V to 110V..

• Fast responding to transient over-voltage.

• Large absorbing transient energy capability.

• Low clamping ratio and no following-on current

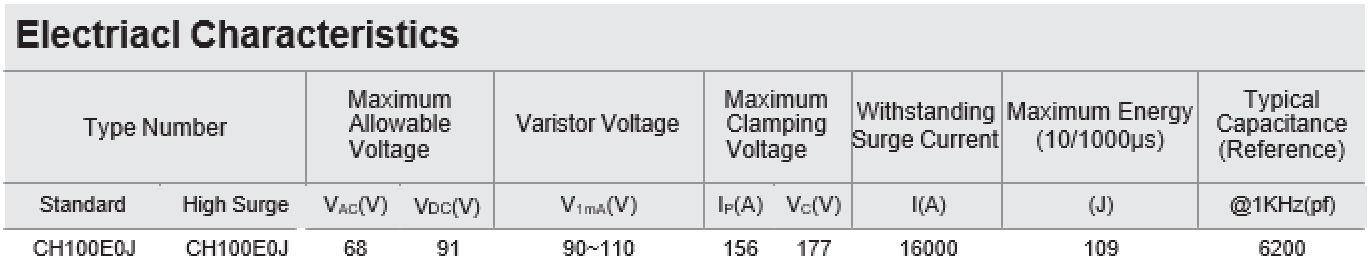

General Characteristics

No Radioactive Material Storage Temperature: -55ºC to +125ºC

Operating Temperature: -55ºC to +85ºC

Body: Nickel Plated

Leads: Surface-mount, Axial Devices: Tin Plated

Devices with No Leads: Nickel Plated

CH100E0J datasheet.pdf
