Introduction
The TSG-22 Thermal Fiber Stripper is designed for fast, safe and precise stripping of optical fiber coatings. Featuring intelligent temperature control, one-button operation and a rechargeable lithium battery, the TSG-22 provides reliable stripping performance for fiber optic installation, maintenance and manufacturing applications. Its compact aluminum alloy body makes it ideal for both laboratory and field environments.

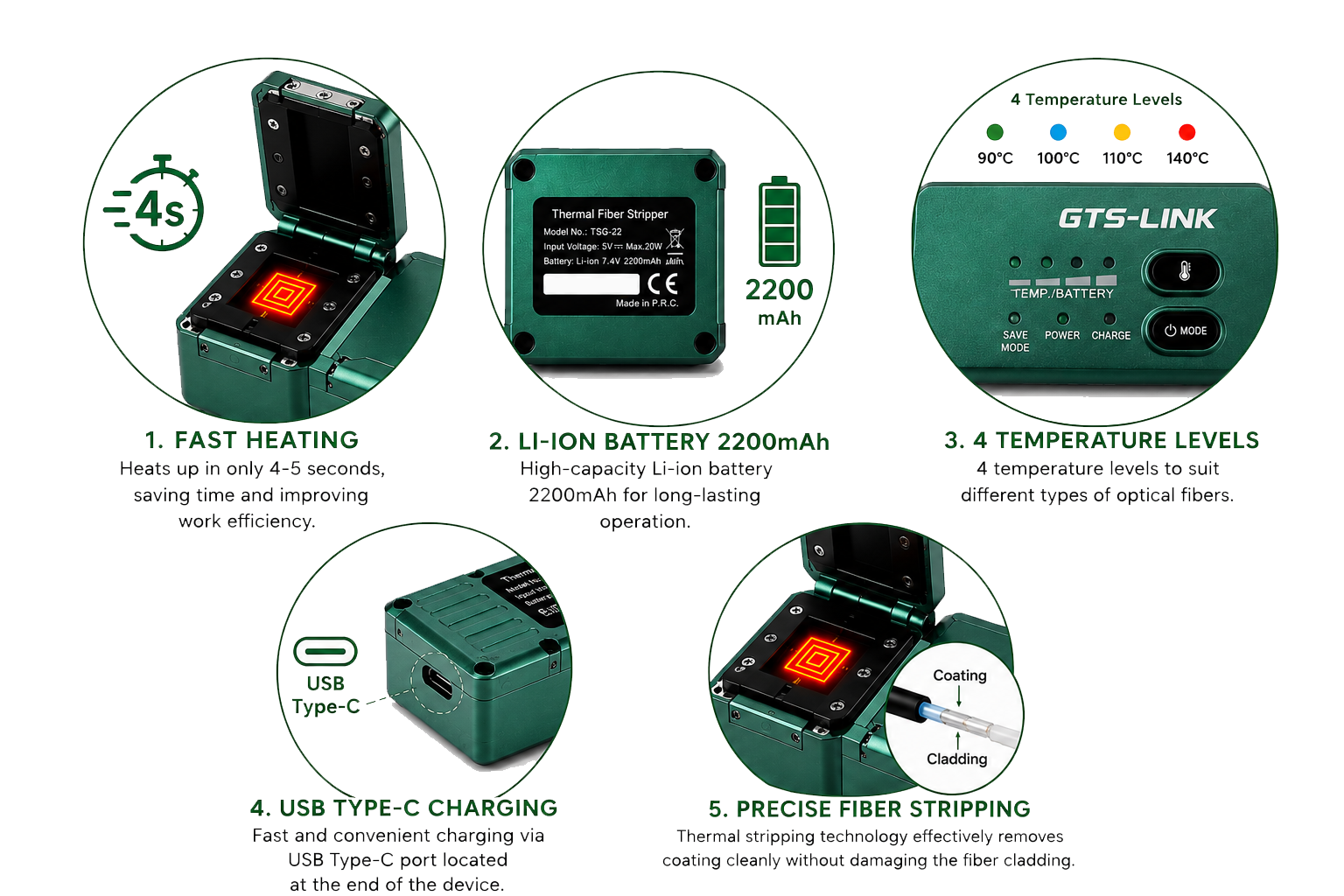

Features
Specifications |
| Model | TSG-22 |
| Product Type | Thermal Fiber Stripper |
| Applicable Fiber | Bundle / Ribbon / Bare / Pigtail / Invisible Fiber |
| Number of stripped fiber | Bundle fiber: 1-12 cores/Bare fiber: 1-36 cores/ Pigtail fiber: 1 core Ribbon fiber: 2-36 cores/Invisible fiber: 1-12 cores |
| Cladding Diameter | 125μm |
| Coating Diameter | 200 - 400μm |
| Stripping Length | Up to 30mm |
| Power mode | Normal Mode / Power Save Mode |
| Temperature Setting | Approx. 90°C/100°C/110°C/140°C |
| Heating Time | Normal Mode: Approx. 4s/ Power Save Mode: Approx. 5s |
| Battery Capacity | Lithium ion battery 7.4V 2200mAh |
| Power Supply | USB Type-C (5V-20V,Max.20W) |
| Operating Condition | Temperature: -10°C ~ 40°C/ Humidity: 0% ~ 95% |
| Dimensions | 106L x 44W x 30.5H (mm) |
| Weight | 249g |
Packing
Thermal Stripper x1
Type-C charge cable x1
Brush x1
Packing box x1
